TAM offers outstanding accessibility and durability ( 템의 뛰어난 접근성과 내구성)
TAM은 최근 미국 현장 설치를 위해 장시간 비행과 4번의 경유를 거쳤습니다. 개인 짐들 사이에 함께 실렸음에도 공간을 크게 차지하지 않았고, 긴 이동에도 고장 없이 완벽하게 작동함으로써 TAM의 높은 접근성과 뛰어난 내구성을...

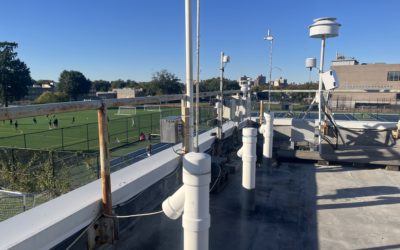

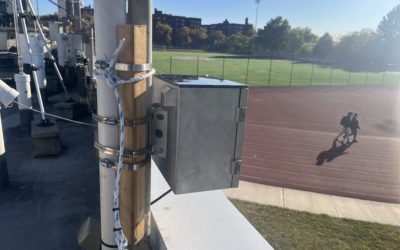

installation at queens college, New York (미국 뉴욕 퀸즈 컬리지 설치)

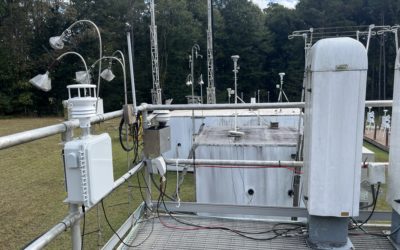

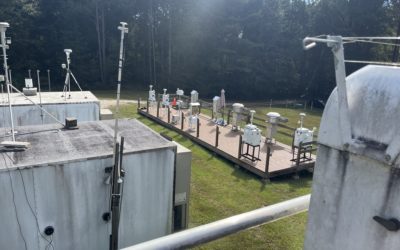

Installation completes in south DeKalb, Atlanta ( 미국 아틀란타 사우스 데칼브에 템 설치)

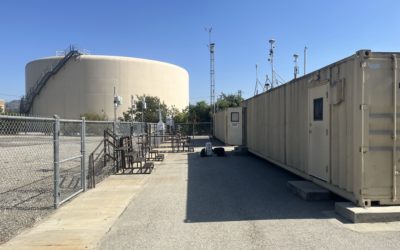

TAM installation in Pico Rivera, Los Angeles (LA 피코 리베라에 템 설치)
A Release of AirAlarm App iOS
초미세먼지 농도가 높아지거나 낮아지면 실시간(1분 해상도)으로 푸시 알림을 서비스해주고, 측정값을 쉽게 확인할 수 있는 스마트폰 앱이 출시되었습니다. 현재는 iOS 용으로 먼저 배포되고 있습니다. 아이폰 또는 아이패드의...
TAM Installation at Global Atmosphere Watch in Anmyeondo (기상과학원의 안면도 기후변화감시소에 템 설치)
Jan., 23, 2024. As part of the 2024 NASA Asia AQ project, TAM is installed as a ground monitoring device of fine particulate...
Tower of Seoul Namsan transmitting station (서울 남산송신소 철탑에 설치)
Three TAMs were installed in the tower of Seoul Namsan transmitting station on Dec. 7, 2023. The Tower is 243m above sea level....
Korea Ocean Research Station, Socheongcho (해양과학기지 소청초)
TAM was installed on Socheongcho of Korea Ocean Research Stations on Nov. 24, 2023. The installed location is (37.42312,...
장기 고농도 미세먼지 지역, 코로나 19 사망률 높다
미국 하버드대 연구팀은 4일(현지시각) 전국 3089개 카운티 통계를 바탕으로 분석한 결과 미세먼지 오염도와 코로나19 사망률의 연관성이 높다는 사실을 밝혀냈습니다. 미세먼지 오염도 수치는 인간의 건강에 직접적으로 피해를 끼칠 수...
Downloads
Manuals
Program GG Tool | version 1.1
Logging & Device Management Tools (GUI) for Windows
Program ggserial device management tool
Device management tool (command line interface)
USB-Serial Driver for Windows
Tech Specs
Measurement Specifications
Measurement Principle: Light Scattering
Primary Measurement Data: PM2.5, PM1.0
Secondary Measurement Data:PM4.0, PM10, Temperature, Humidity, Atmospheric Pressure
PM Measurement Units: μg/m³ and counts/m³
PM Measurement Range: 0 – 1000 μg/m³ and 0 – 55,000 counts/m³ (before ML correction)
Measurement Resolution: 0.1 μg/m³ and 1 count/m³
Measurement Interval: 5 seconds
Automatic Humidity Control: Built-in automatic tiny aerosol conditioner
Operating Temperature: -20°C – 70°C
Operating Relative Humidity: 0 – 100% RH
Buillt-in GPS: real-time location tracking and location-based services
Power & Physical Specifications
Power Supply: AC 100 – 240V
Power Consumption: 2.1W (typical at 25°C, 60% RH), max 4.7W
Dimensions (W × D × H, cm):
– Main Unit: 13.8 × 8 × 17

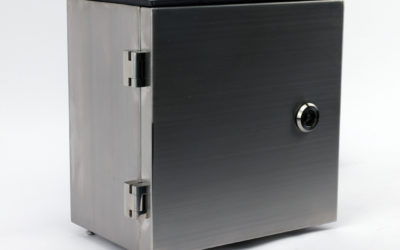

– With Enclosure: 22.0 × 16.0 × 22.6
Weight:
– Main Unit: 930g
– with band bracket & enclosure: 4.19kg
– with short stand & enclosure: 4.335kg
– with long stand & enclosure: 8.92kg
Warranty: 1 year
Serial Communication & Data Management
Serial Interface: RS232 serial communication for local data logging and diagnostics
Device Management Software:
– GG Tool (GUI) for Windows 10 or higher and macOS (14.6 or higher)
– ggserial (CLI) for Windows, macOS, and Linux
Data Logging:
– Local Logging Interval: Selectable (1, 5, 10, 30, or 60 minutes)
– At 1-minute logging, up to 28 years of storage with 1GB memory
Server Logging: 1-minute or 10-minute intervals, stored in server database
– Data access and download available at (https://airnow.kr/ggtam)
Embedded Multitask Operating System:TAM OS
Smart Connectivity
Mobile App Support: Air Alarm G (Android, iOS, and macOS)
IoT LTE-M1 Modem: supports AMT5920SK (not included)
Wi-Fi: Wi-Fi 802.11b/g/n 2.4GHz
Wi-Fi Security: WEP / WPA-PSK / WPA2-PSK
Wireless Data Transmission Interval: Selectable between 1 minute and 10 minutes
Wireless Data Integrity: Anti-tampering data transmission technology is applied
